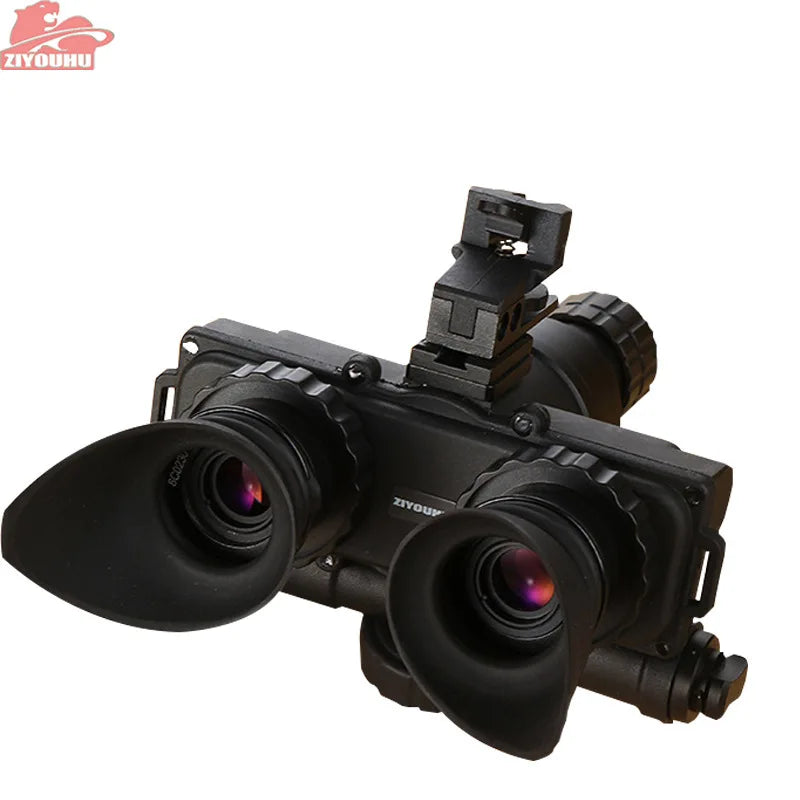

ZIYOUHU Green Low Light Night Head Mounted Gen 2+ Image Intensifier Tube Night Vision Device Outdoor Tactical Hunting Binoculars

ZIYOUHU Green Low Light Night Head Mounted Gen 2+ Image Intensifier Tube Night Vision Device Outdoor Tactical Hunting Binoculars

$2,349.00
$4,699.00 $2,349.00
Sale Sold out
Shipping calculated at checkout.
Model Number
Objective Lens
Magnification

Specification:

  • Objective Lens: 24mm
  • Effective Distance: 240m
  • Magnification: 1x
  • Diopter: +/-5
  • Battery: CR123 Lithium Battery(not including)

Package include :

Box *1

Gen 2 Night Vision Device *1

Lens *1 ( standard is 1x. Also have the lens of 3x, 5x, 8x , if need others, please contact with us, thank you)

Helmet *1

Helmet Tipper holder *1

Connect Holder *1

  • Magnification :  1x / 3x / 5x / 8x  zoom（magnification lens need customized ，defaut is 1X lens )
  • Resolution ( LP/MM):  more than 72 (US standard HTP FOM 1250)
  • Visual Distance(m) : more than 240
  • Code recognition range :180 meter
  • Field angle (degree) : 40 +/ -2
  • Focusing range (m) : 0.3 – infinity
  • Range of accommodation : -5 , +5
  • Power supply voltage(v): CR123 lithium battery
  • Objective focal length(mm): 27
  • Objective aperture(mm): 24
  • Outlet diameter(mm): 20
  • Exit pupil diameter(mm) : 7
  • Exit pupil distance(mm) 23
  • Working temperature(degree centigrade): -40  to +50
  • Storage temperature(degree centigrade) : -50 to +60
  • Size(mm): 178 x 112 x 62
  • Weight (kg): 0.48
  • Operating time( close infrared) : 60 h
  • Operating time ( Open Infrared) : 40 h

  • HB-Y 5I  is a binocular single tube telescope night vision device.

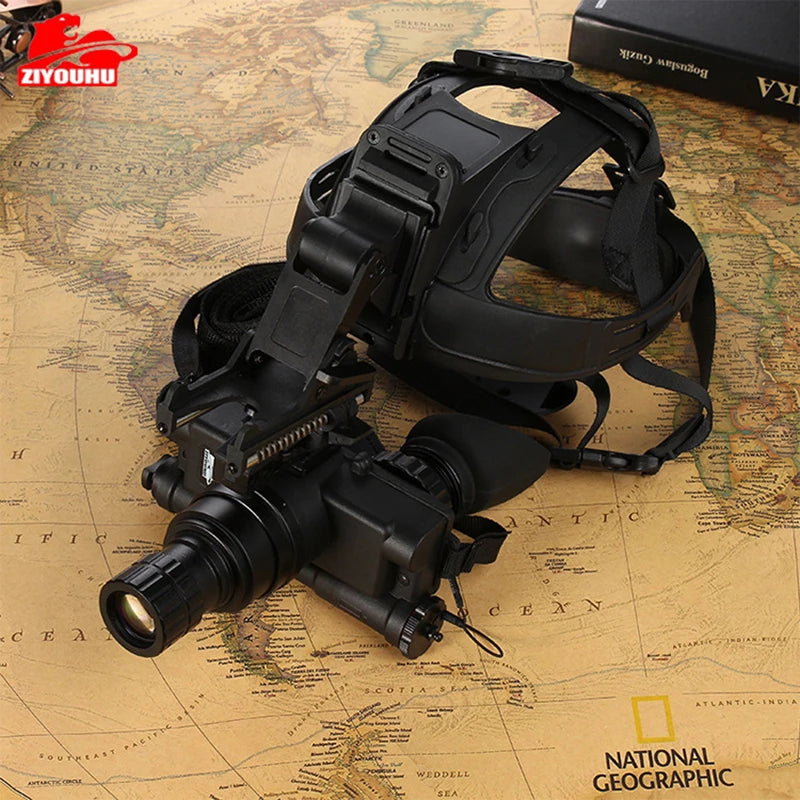

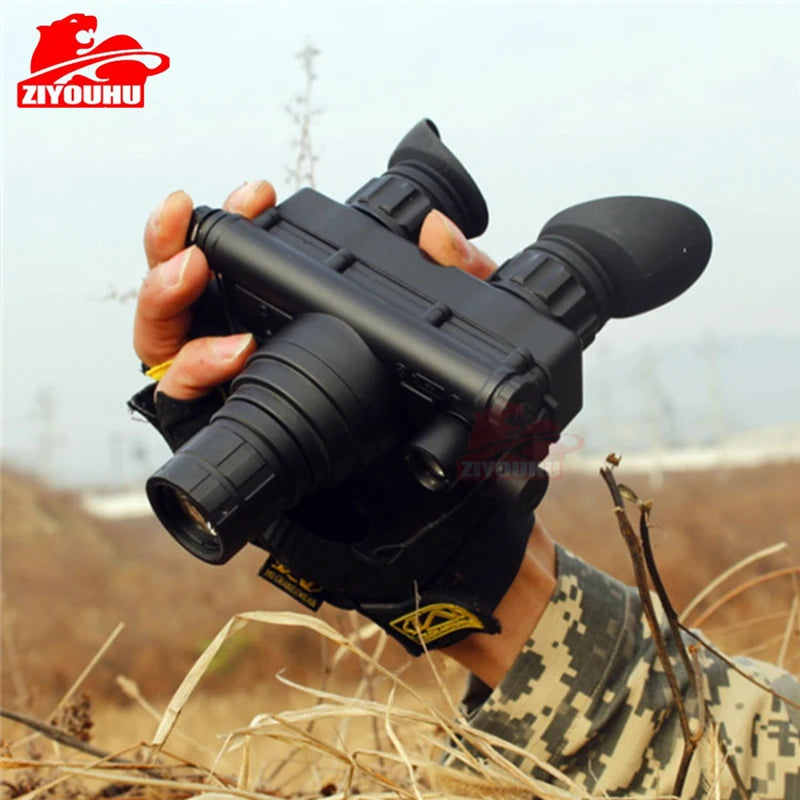

  • It can handheld or headwear helmet mounted.
  • Image intensifier level : 5I

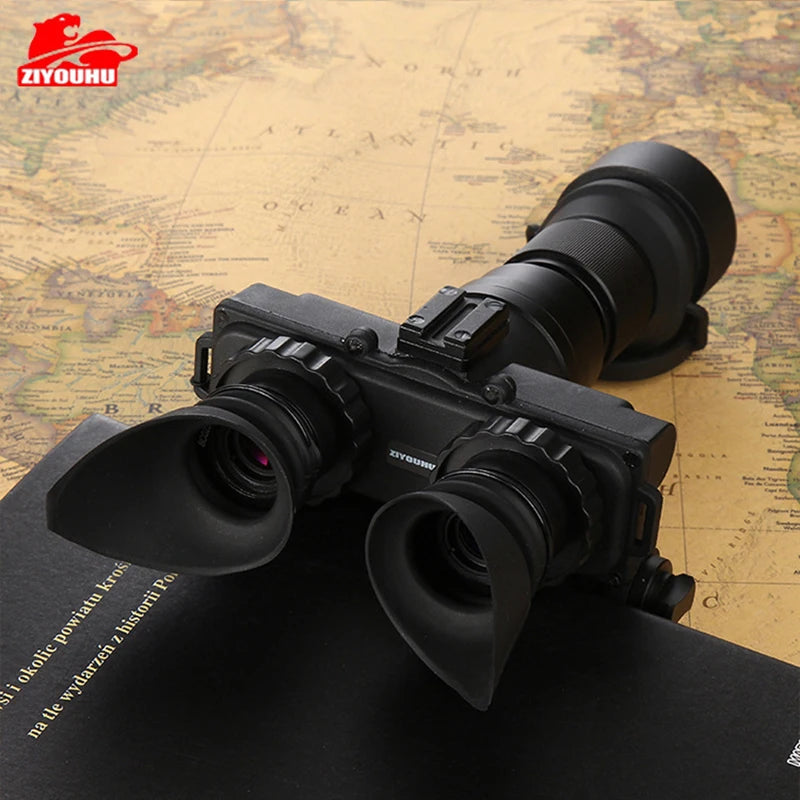

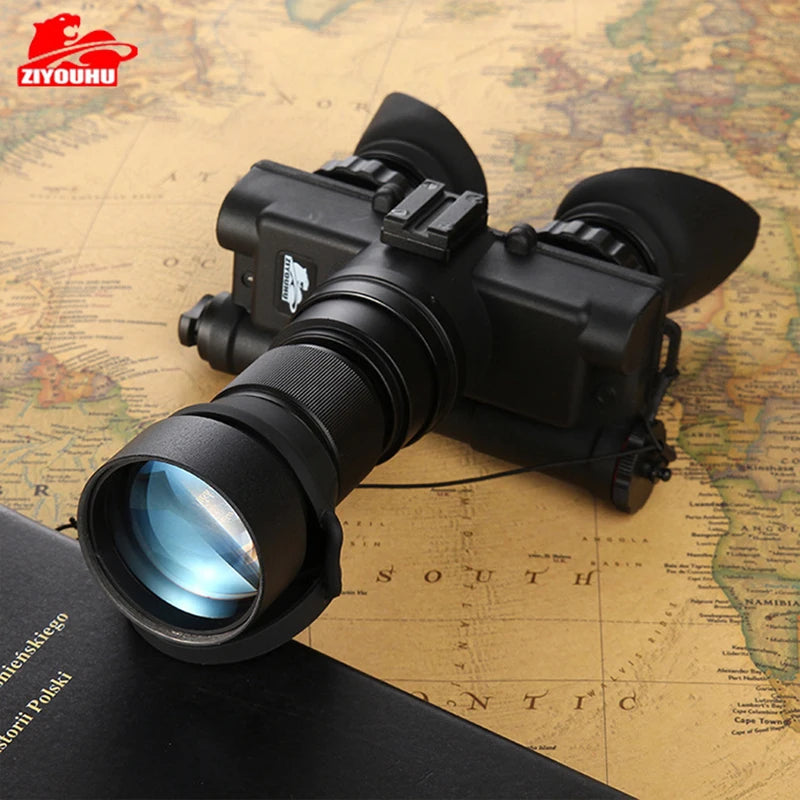

  • This machine can install 1, 3,  5, 8 times lens. （default is 1X lens, other lens need customized）
  • When the lens is mounted 8 times, it can be connected to the 3 foot frame for remote observation.
  • High power infrared light can be installed.
  • It has the function of AUTO. When the head is in use, it will turn upwards and wear the bracket, and the equipment will shut dowm automatically.
  • Strong light protection and automatic brightness control function.
  • Built in wide-angle infrared light for target search

  • Gen 2+ Image Intensifier Tube Night Vision Device can be for military tactical hunting use
